File:Process flowchart 01.png
Size of this preview: 800 × 600 pixels. Other resolution: 960 × 720 pixels.
Original file (960 × 720 pixels, file size: 50 KB, MIME type: image/png)

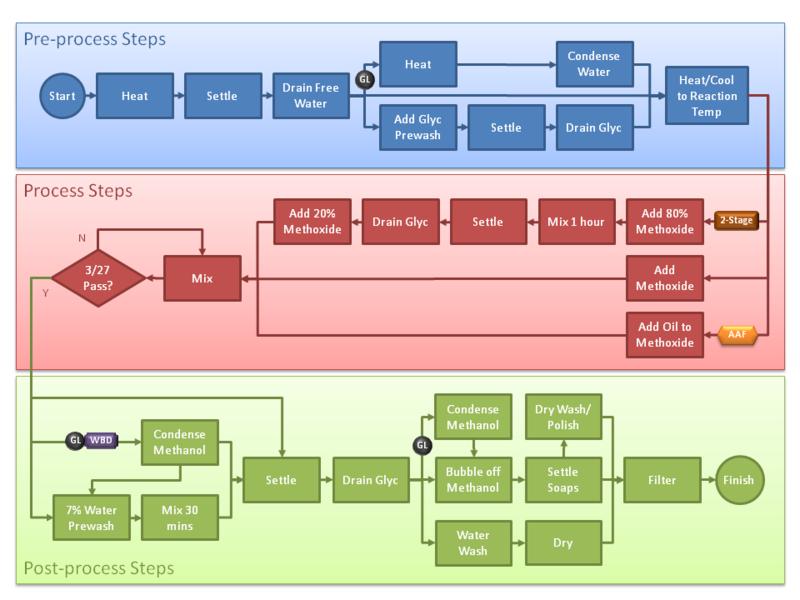

Generalised biodiesel process flowchart. Includes GL and non-GL approaches, with glyc pre-washing, 80/20 two-stage, whole-batch demeth and water washing options.
